Z900 – Episode 2: The Engine

Continued from: Part 1: The Find

Once I had the bike in the garage I started it a few times, just to make sure she ran. No particular reason, considering the full restoration she is about to undergo, just to comfort me I guess that I bough a bike that kind of works…

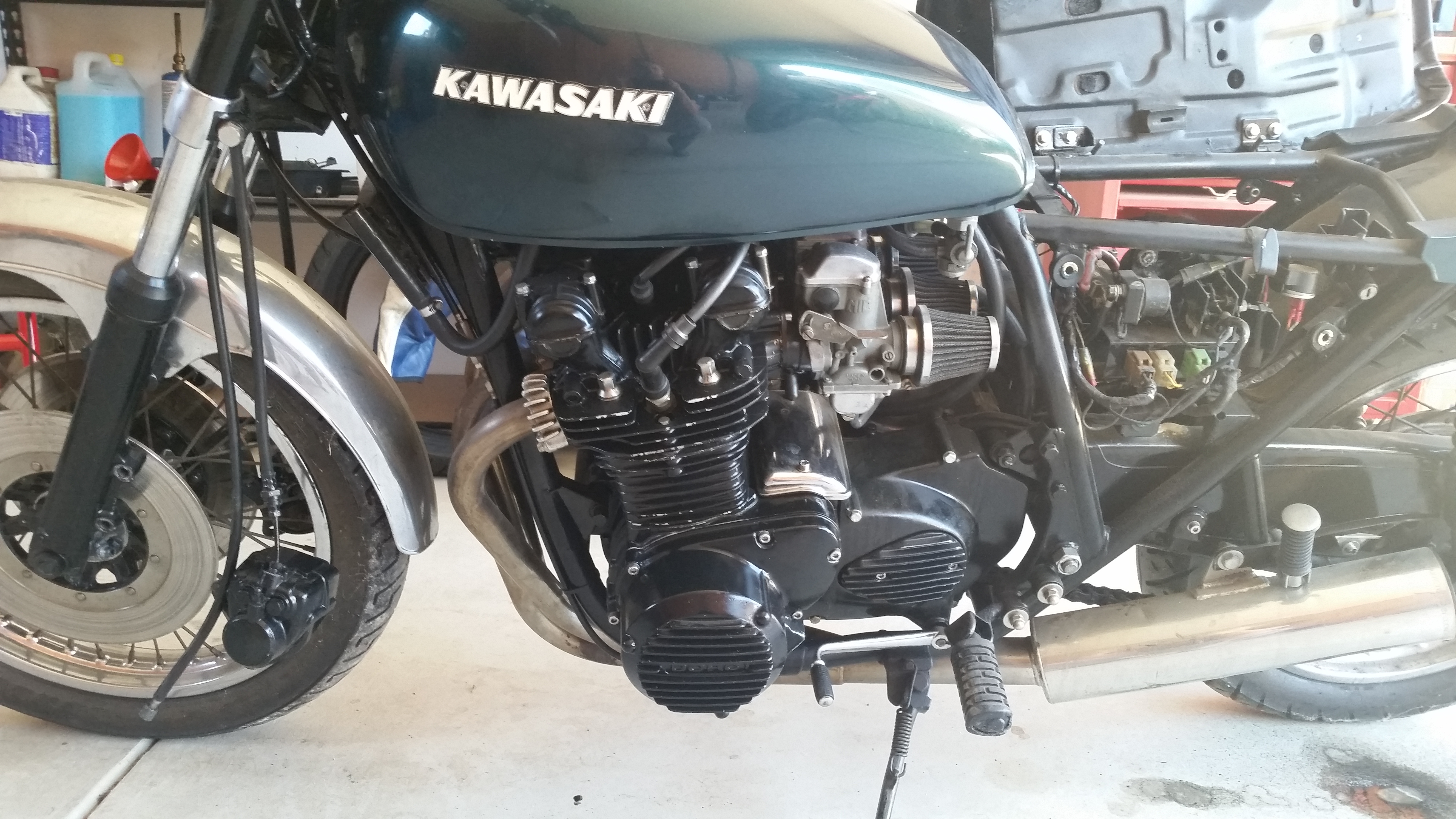

20140803_131808

Once I swapped out the cactus battery and put in fresh fuel and checked the oil level; she eventually started…or more like huffin’ and puffin’ for the first time in a long time. She was a sorry sight but not unexpected; slated for a rebuild over ten years ago, she has not been touched since.

I didn’t let her suffer much longer, once she cooled down, my good mate Daniel and I took the motor out. Black paint and the side covers present are not standard for this era, so before any rebuild to occur, she had to be hydro blasted back to bare metal.

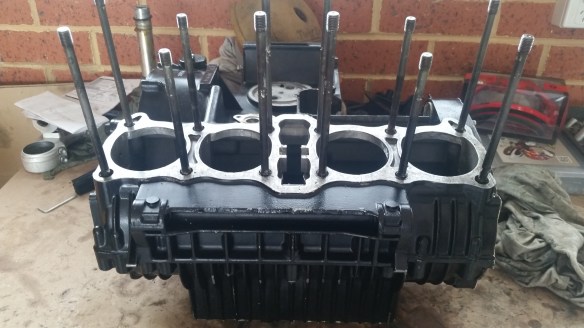

20150131_085232

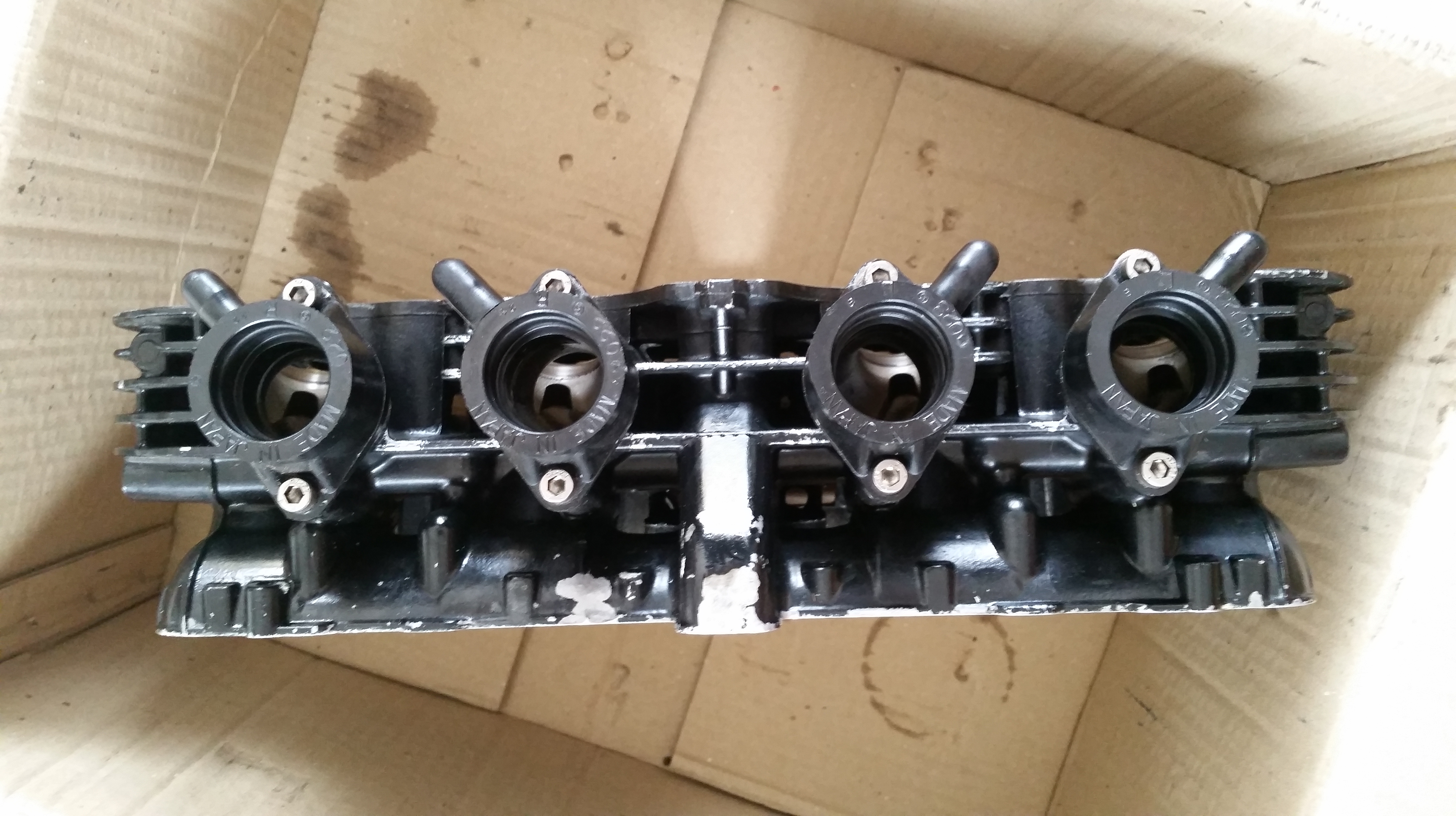

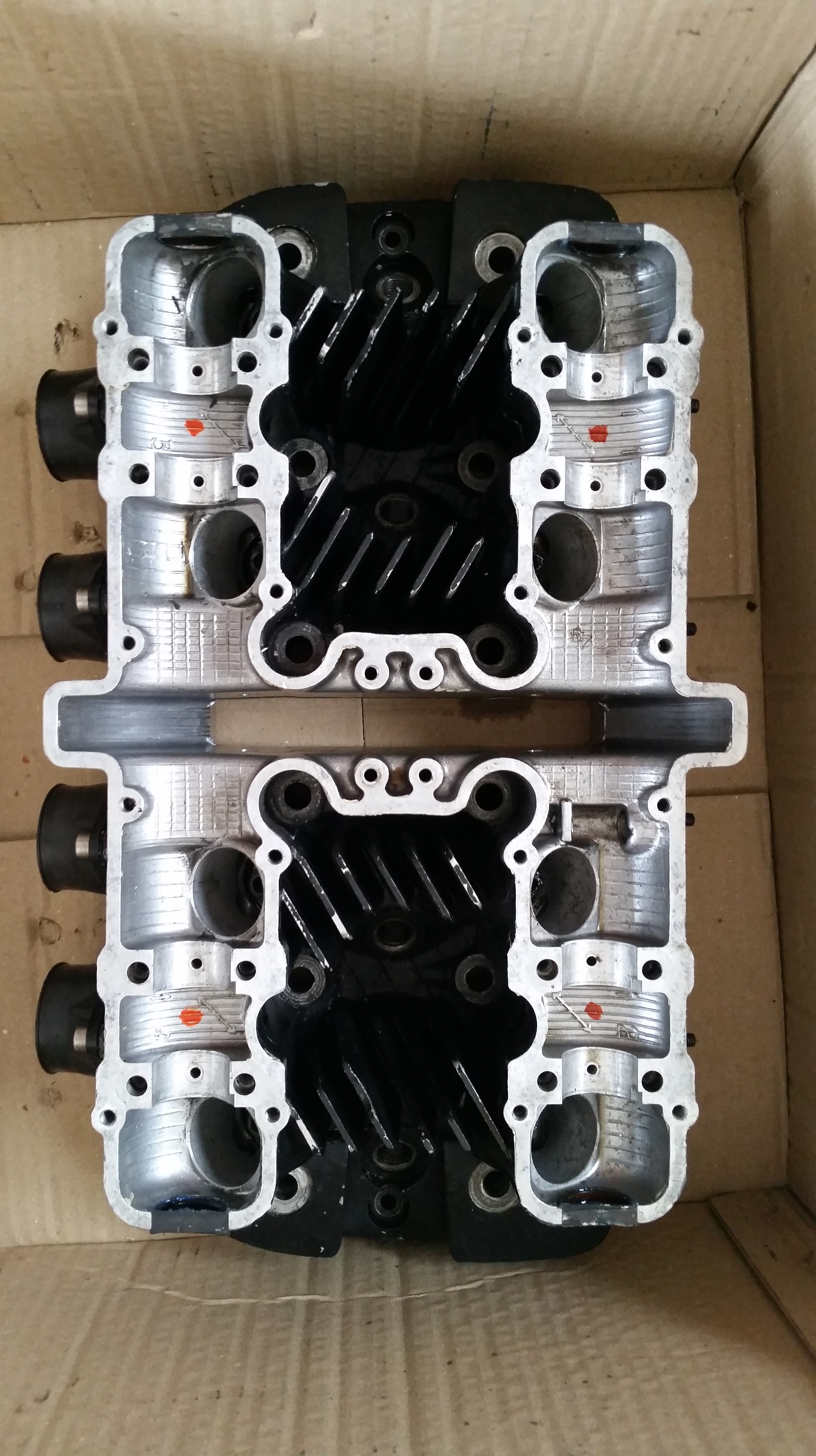

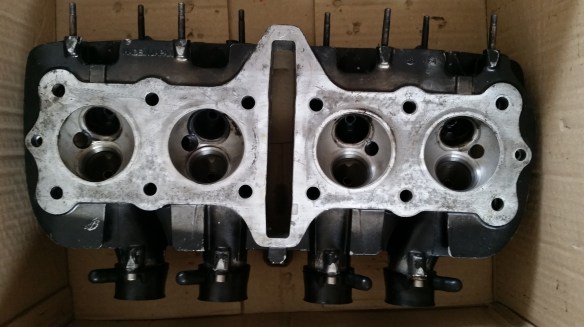

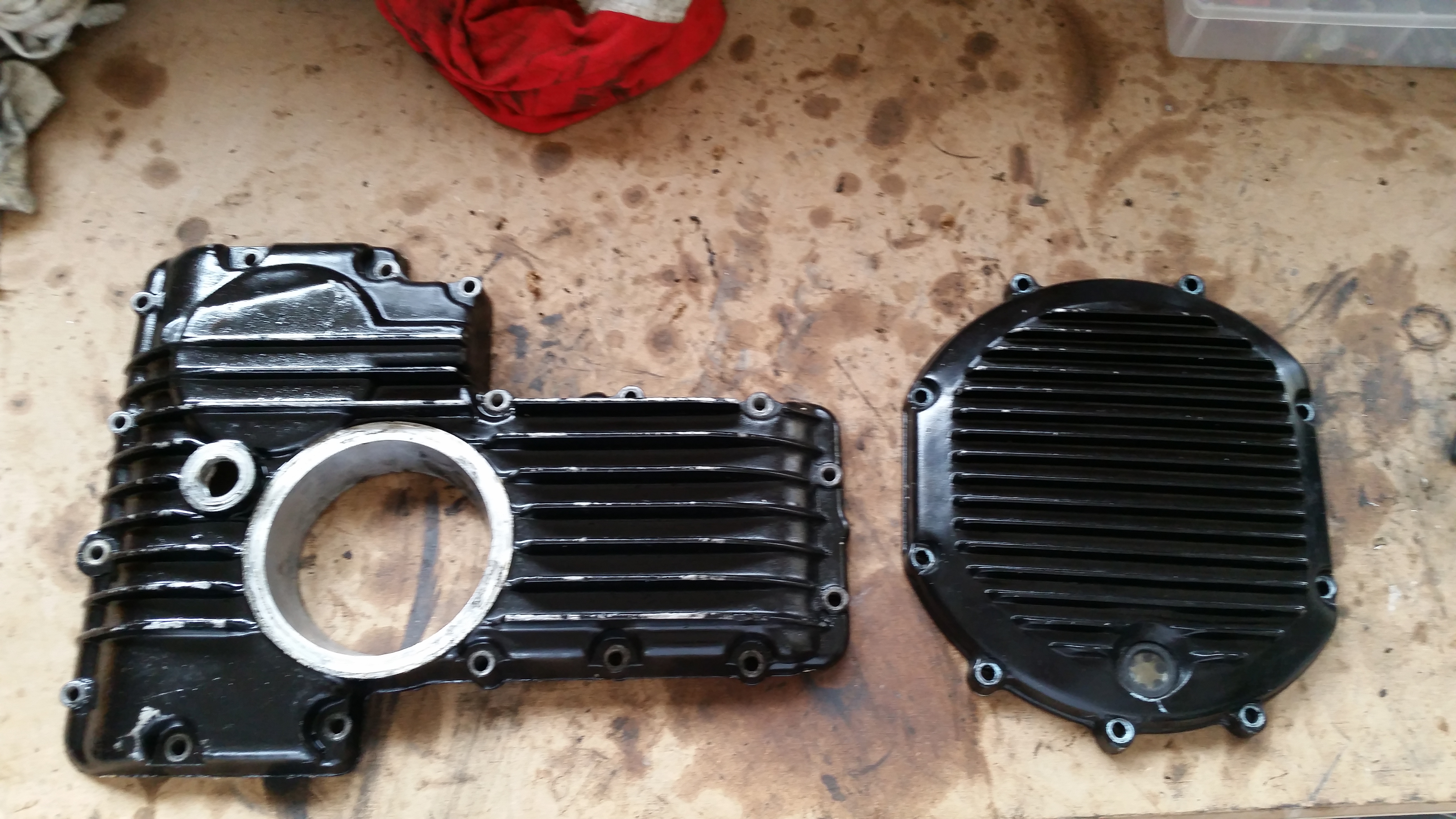

We took the motor to bits and off she went to Woody’s Hydroblast in one of the southern suburbs of Melbourne.20150131_084847 20150131_084936 20150131_084950  20150131_085004

Once the hydro blasting done…

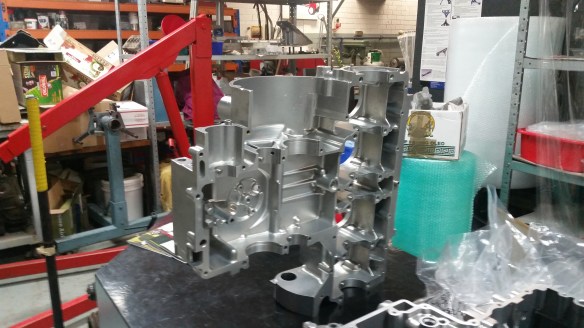

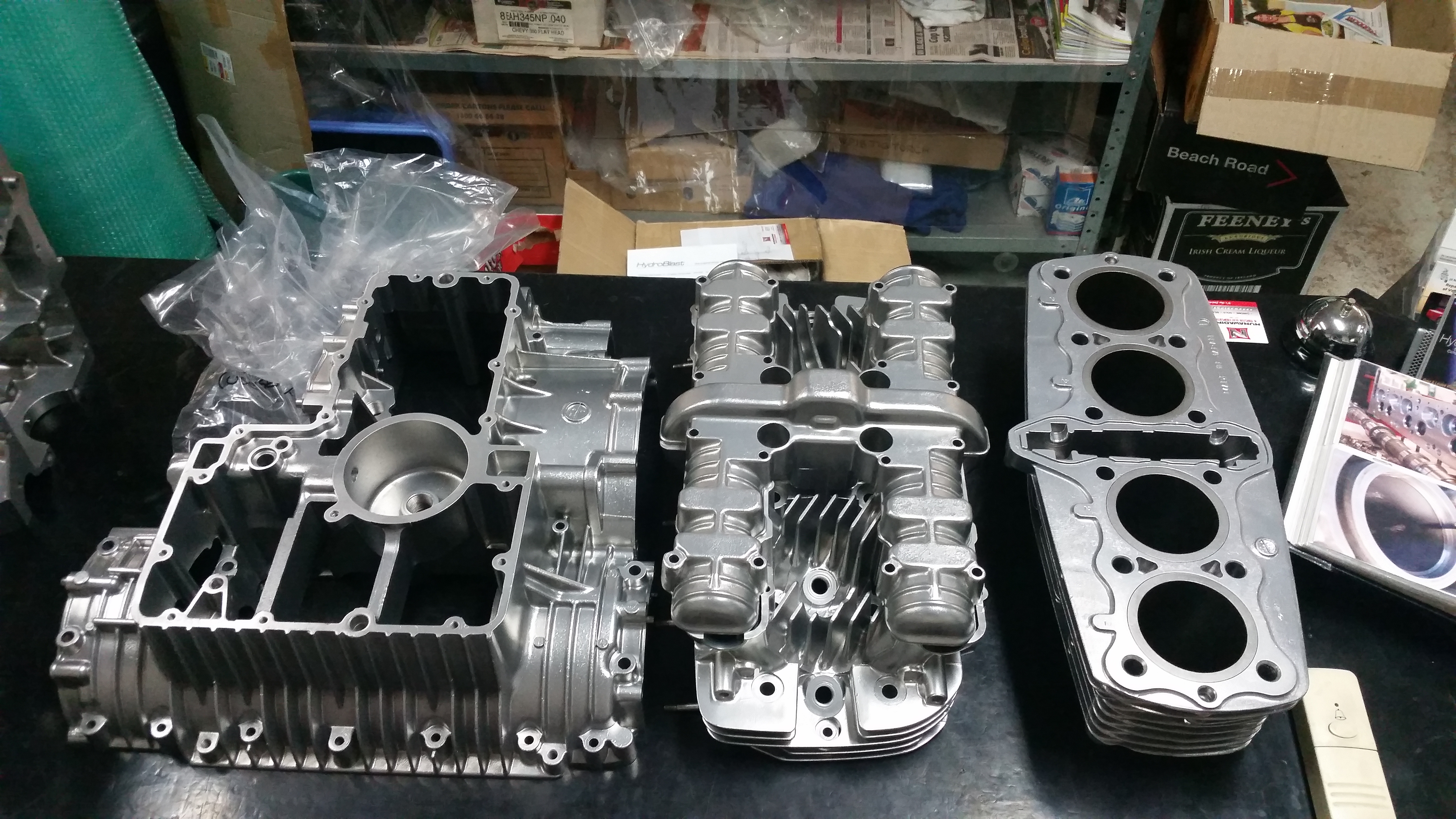

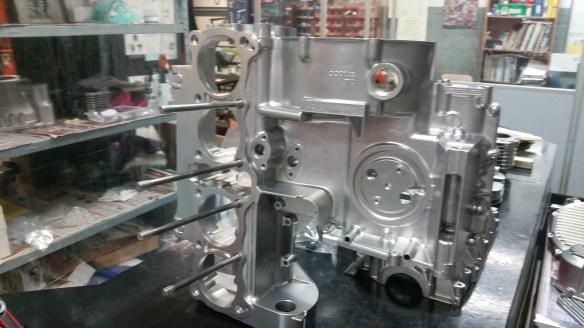

20150311_205708 20150311_205702 20150311_205657

Pristine job by Woody’s back to bare metal hydro blasting…

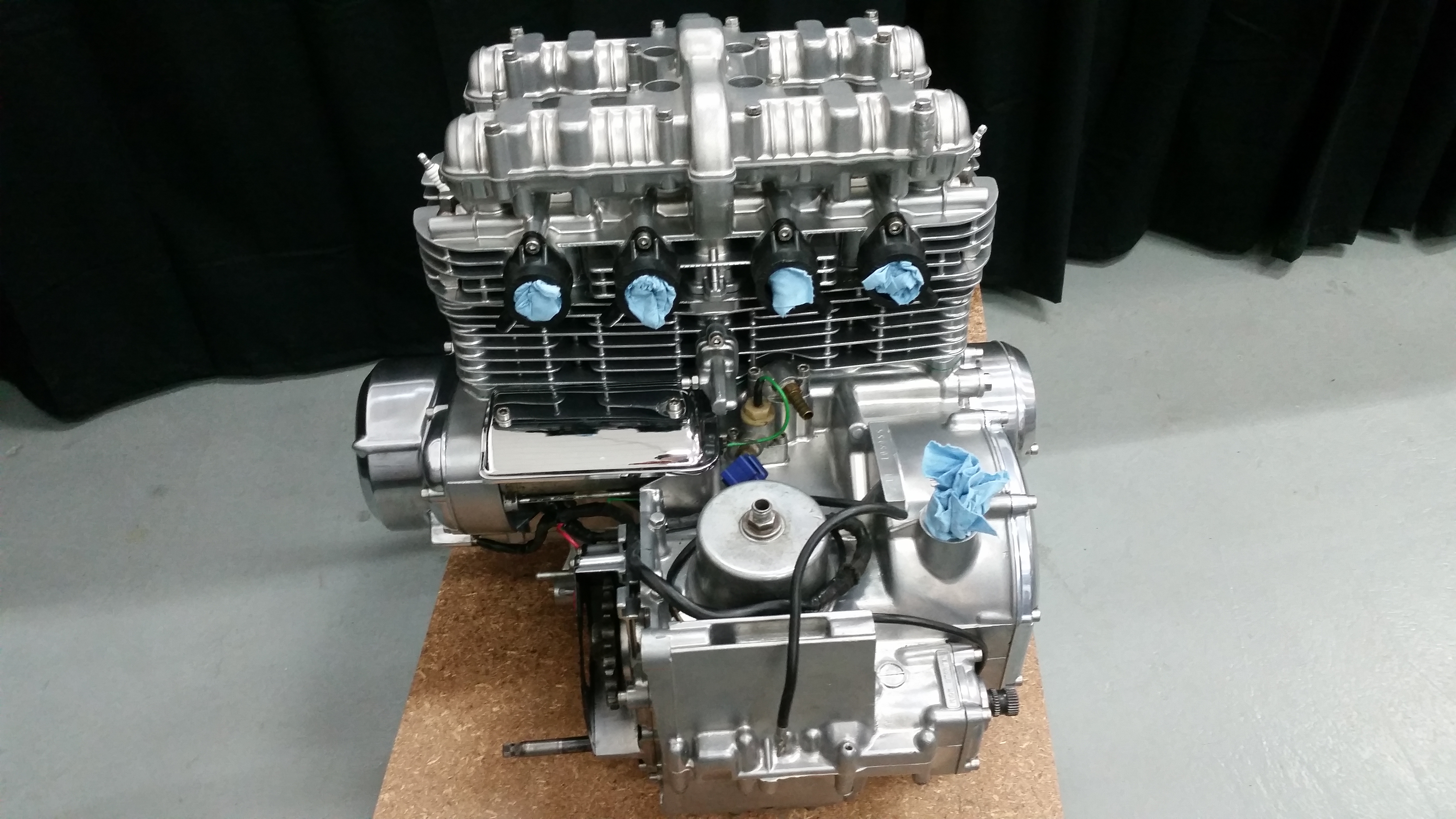

Next stop was to Scotty’s to have the motor fully rebuilt. The cams, polished, valves re-cut and seated, new pistons (0.5mm oversize) and bearings. The final job on the motor looked like:

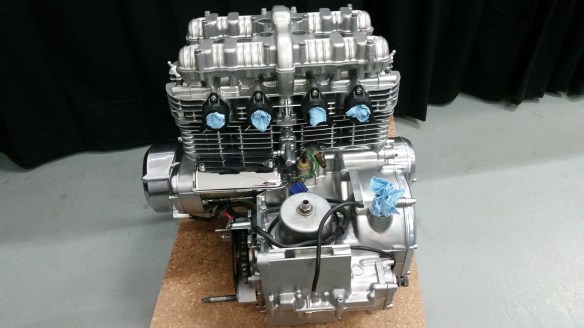

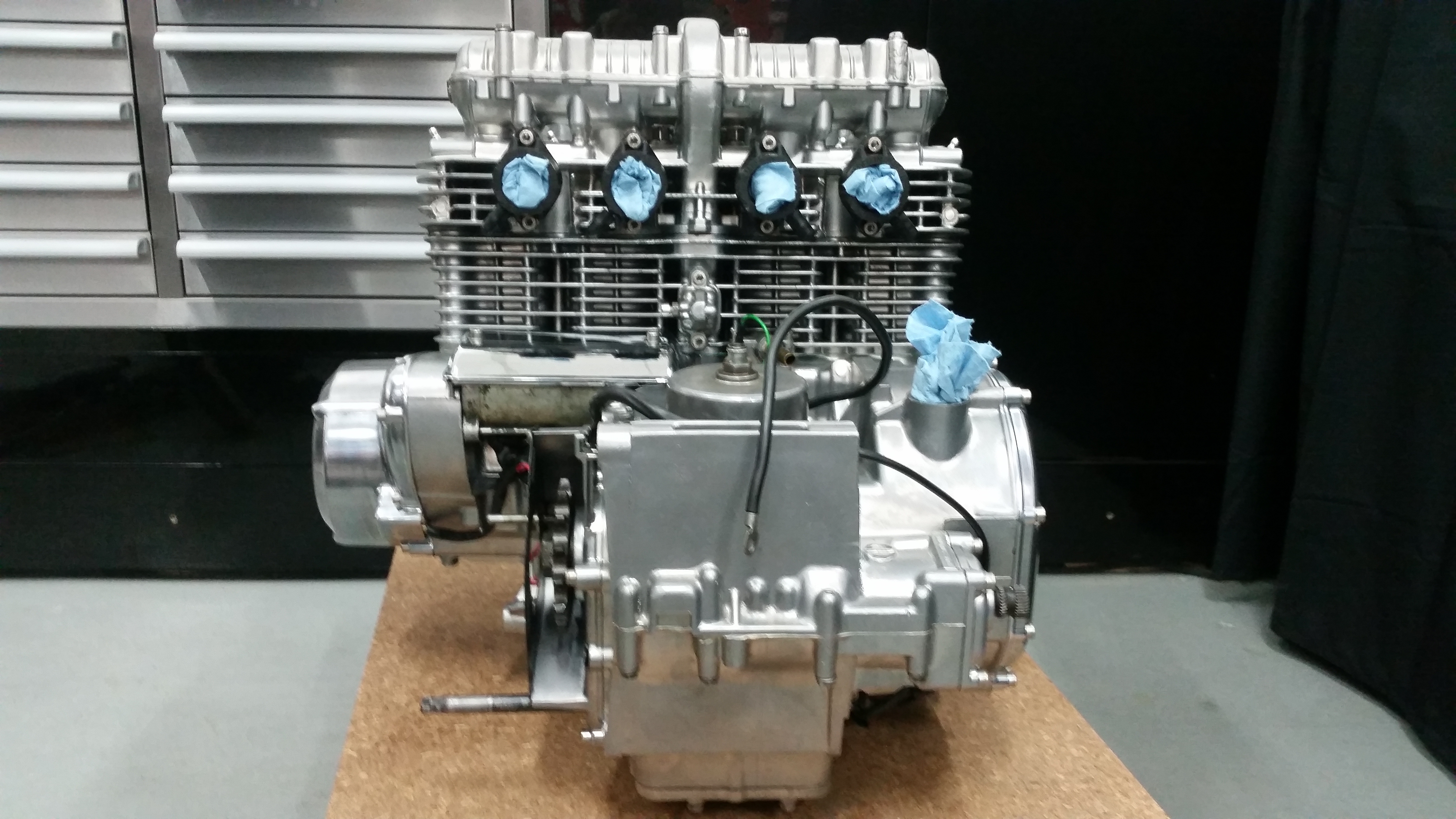

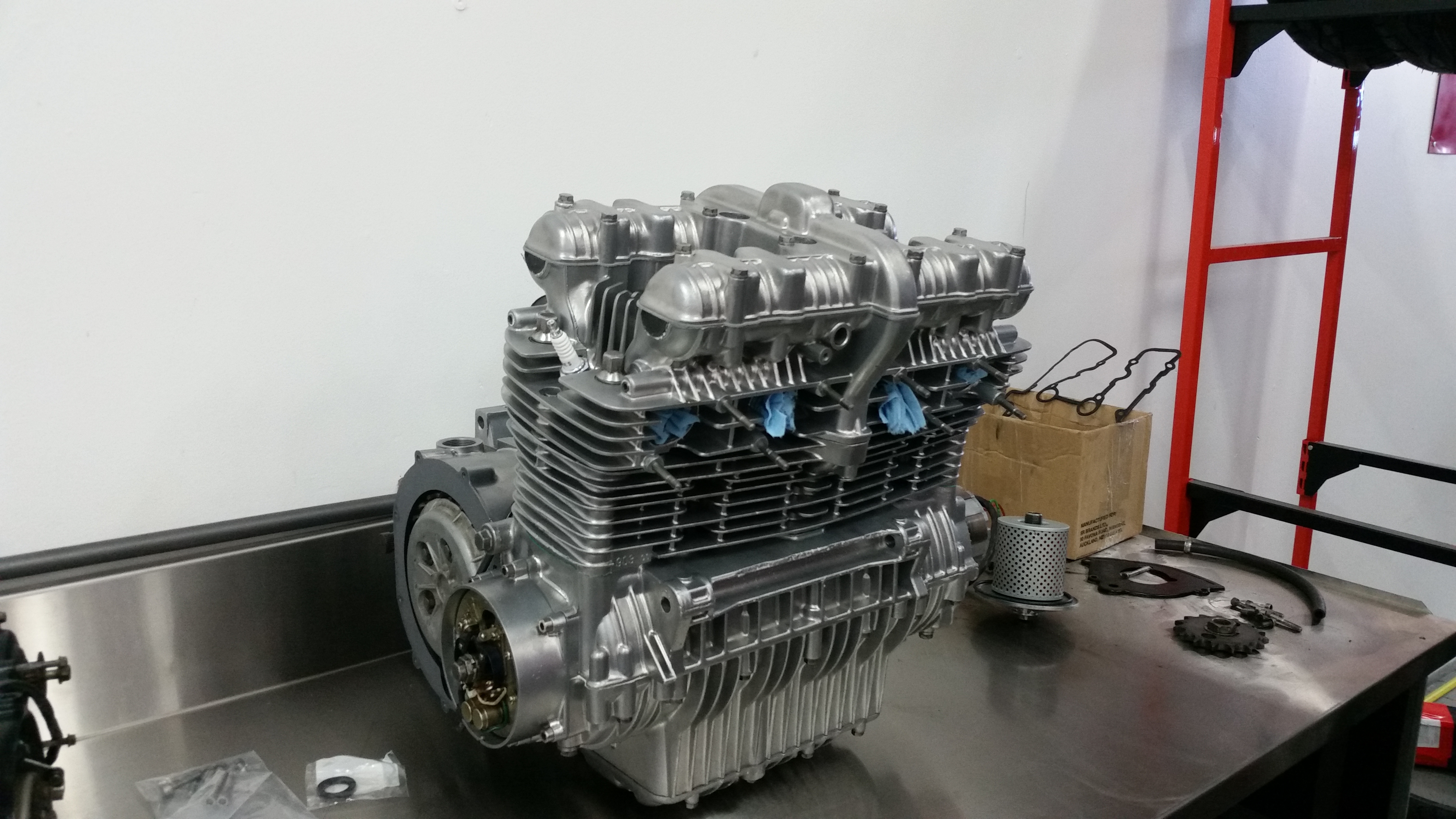

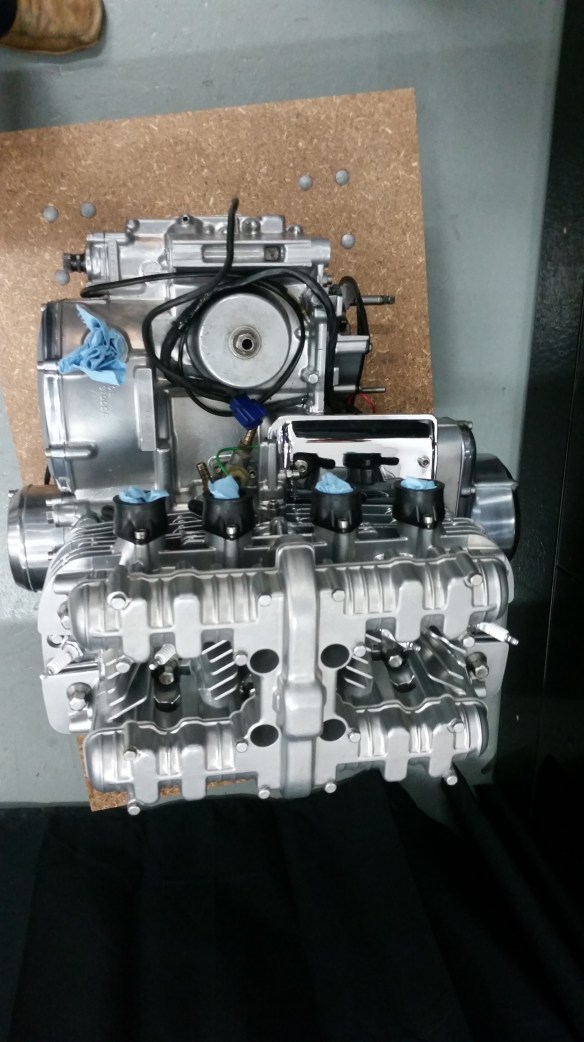

20150711_141128 20150711_141030 20150711_141455 20150523_105536 20150523_105527 20150711_140914

And what about those non-std covers? Luckily Z1 Parts.net came to the rescue with these perfect examples:

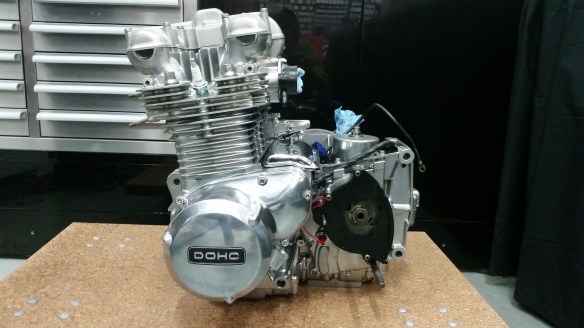

20150711_140849 20150711_141055

Looks like a piece of jewelry. Thanks Z1 Parts.net for the final touches.

The next step was to start focusing on the frame. Have to make sure she is straight before she is painted so before anything, the motor had to be installed ready for the jig.

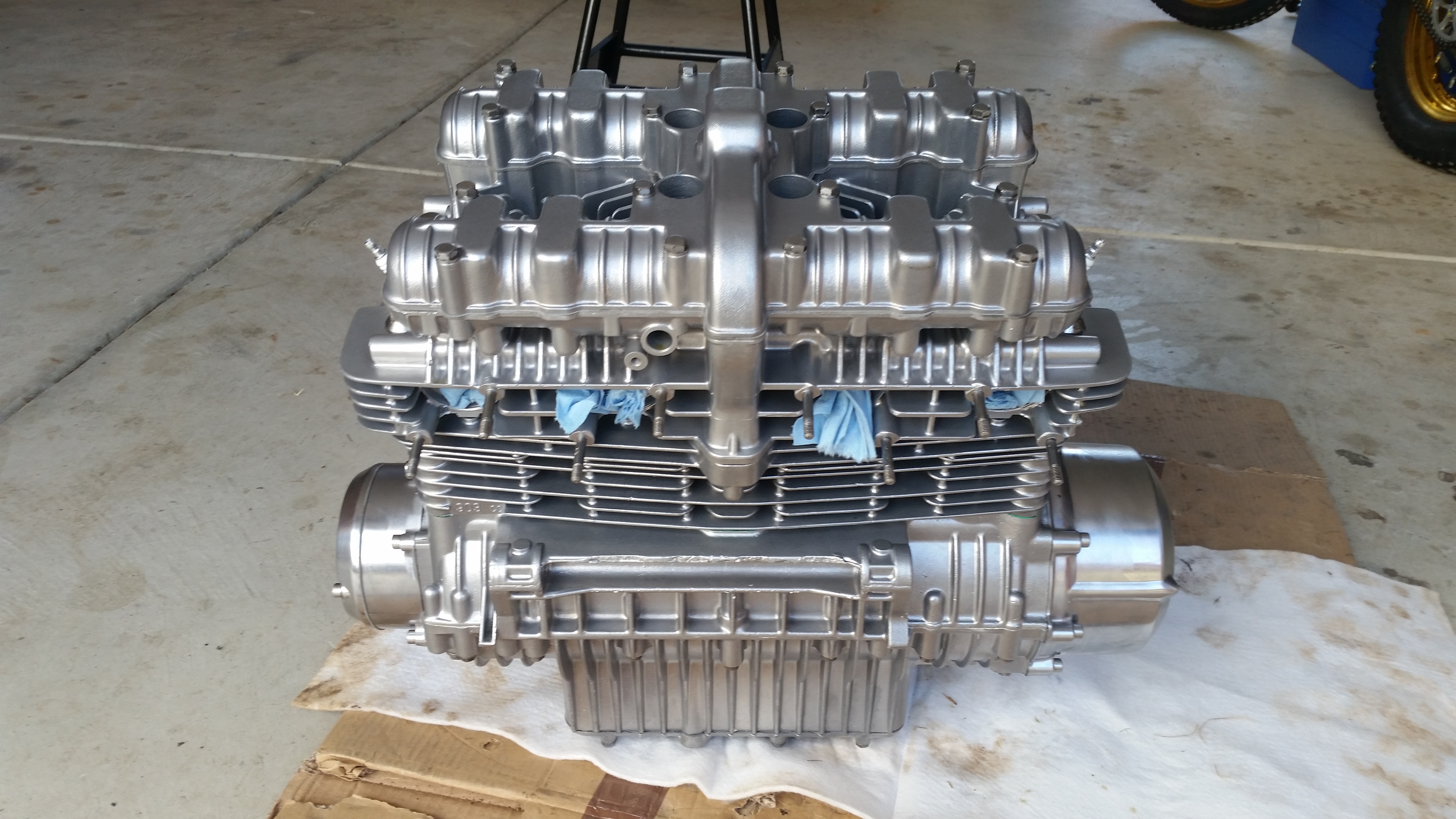

20150723_125015

And when the going gets tough…you need a hammer!20150723_140312

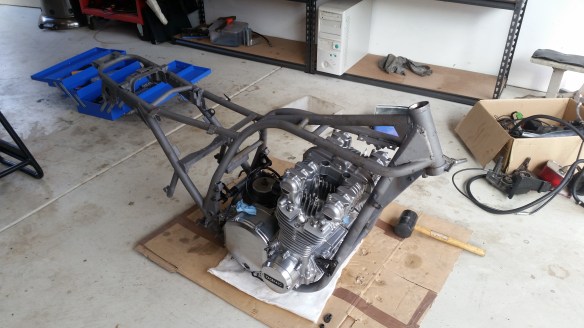

Ready for the rolling frame assembly for the straightening jig.20150723_140142

All smiles now…few minutes earlier lots of crying / swearing. Thanks Daniel!20150723_140314

In Part 3 we’ll focus on the frame…cannot wait to find the time!
